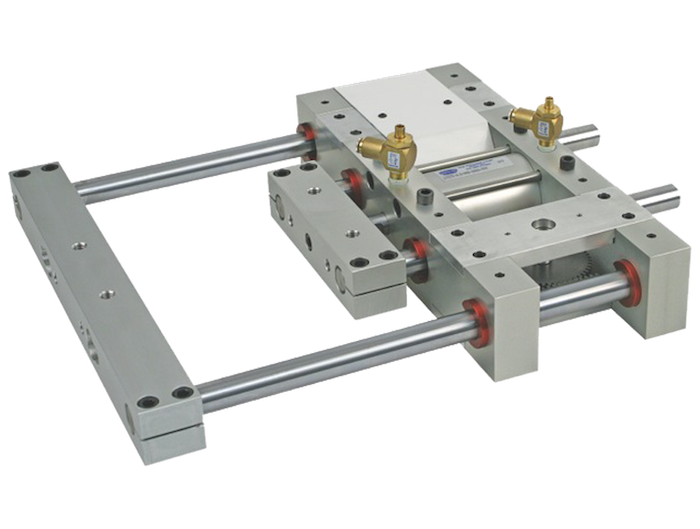

TWO-JAW LARGE PARALLEL GRIPPER - LPG SERIES

The LPG Series is a version of the EZ Series of linear slides modified for gripping. Available in multiple configurations, these grippers support heavy loads and large parts. The toolbars extend toward and retract away from each other with absolute parallelism and precise synchronous motion. This series has centering that is accurate within 0.002 inch repeatability for virtually “play free” gripping.

• Sizes: 50 and 75
• Stroke: 2 to 24 inches
• Grip Forces: Up to 310 lbs (C) or 280 lbs (O)
• Adaptation of Fabco-Air EZ Series Linear Slide
• Double rack-and-pinion design
• Multiple jaw and mounting configurations
