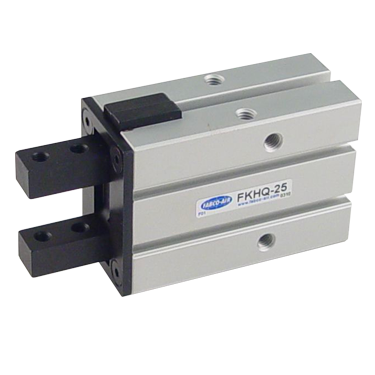

TWO-JAW COMPACT PARALLEL GRIPPER - FKHQ Series
TWO-JAW COMPACT PARALLEL GRIPPER - FKHQ Series
Precio habitual
$0.00 USD
Precio habitual
Precio de oferta
$0.00 USD
Precio unitario
/
por
No se pudo cargar la disponibilidad de retiro
Share
The versatile FKHQ Series features a variety of sizes and pressure ranges to fit a diverse range of applications. Its narrow-opening design works to handle and manipulate objects with a high degree of accuracy. “Open” and “closed” positioning sensors can be easily installed due to mating slots in the gripper’s housing. This gripper’s low profile design and in-line wire outlet provides minimal intrusion for close mounting adjacent components.
FEATURES
- Available in four bore sizes: 10, 16, 20 and 25 millimeters
- Operating pressure ranges: 30 to 100 psi
- Operating media: compressed air
- Internal Gripping Force at 72 psi:
- 10 mm bore: 3.8 lbf
- 16 mm bore: 10.1 lbf
- 20 mm bore: 14.8 lbf
- 25 mm bore: 23.3 lbf
- Available in four bore sizes: 10, 16, 20 and 25 millimeters
- Operating pressure ranges: 30 to 100 psi
- Operating media: compressed air
- Internal Gripping Force at 72 psi:
- 10 mm bore: 3.8 lbf
- 16 mm bore: 10.1 lbf
- 20 mm bore: 14.8 lbf
- 25 mm bore: 23.3 lbf
TECHNICAL ADVANTAGES
- Magnetic piston standard
- Integrated sensor slots in the gripper body: easy mounting of sensors for both “open” and “closed” position sensing
- Hard-coated aluminum gripper body: ensures abrasion, combats corrosion
- No additional lubrication required
- Magnetic piston standard
- Integrated sensor slots in the gripper body: easy mounting of sensors for both “open” and “closed” position sensing
- Hard-coated aluminum gripper body: ensures abrasion, combats corrosion
- No additional lubrication required
